| Curved balcony window frame | ||||||||
|
||||||||
| Product Detail | ||||||||

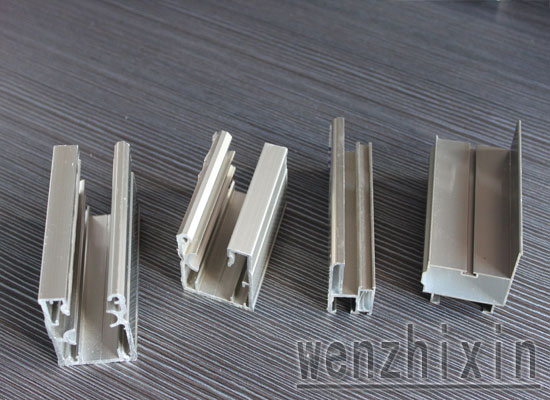

1 Finzone 05 used for all kinds of balcony shape. 2 Finzone 05 used tempered glass 6mm or 8mm or 10mm thickness. 3 Plastic part Finzone 05 used is made of Granule of POM and the swell material according to the required capability by the different parts. 4 Finzone 05 applies SS304 stainless steel, its tensile strength reaches 600N/m2, its hardness is 180HV, and it will not break during its usage. 5 The thickness of Finzone 05 profile is 3mm. 6 Finzone 05 applies 6063T5 aluminum-magnesium alloy section, and the surface is treated with powder coating. 7 The upper profile and lower profile are same and the upper glass profile and lower glass profile are same too. 8 The specifications of selection is according to the height of balcony. The width of the glass used in general between 500 ~ 700mm.The max height of the glass used 2800mm. 9 Finzone05 used special glass profile, so no rivet indoors.
|
||||||||
